1.Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard; metric system;19" international and ETSI standard.
2. Simple structure design, Max. static load 700kgs.
3. For single section cabinet, with SINGLE OPEN (fully door) perforated front locking door,and DOUBLE OPEN (split door) perforated rear locking door.

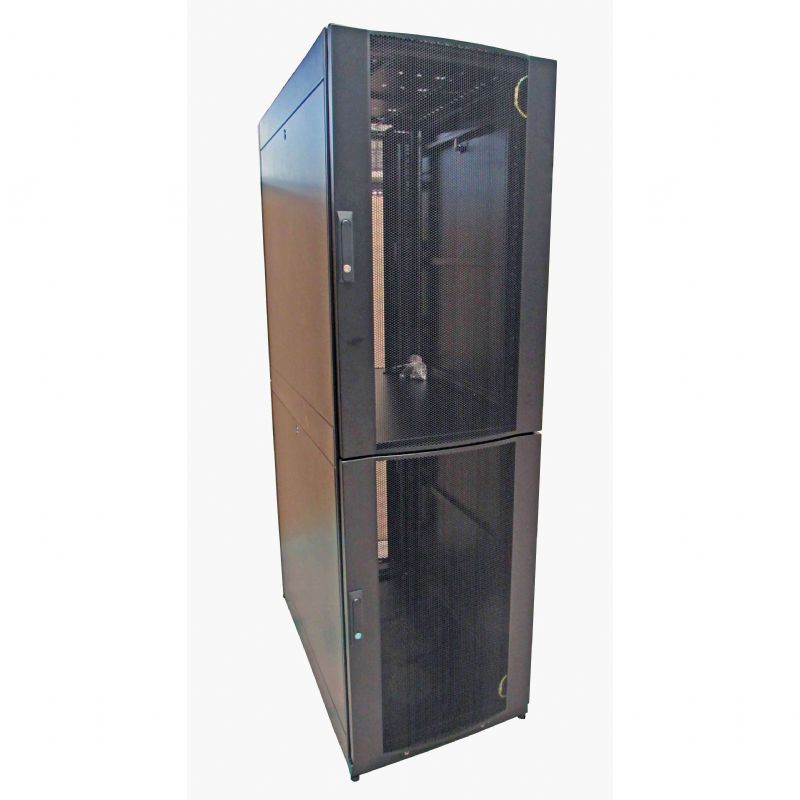

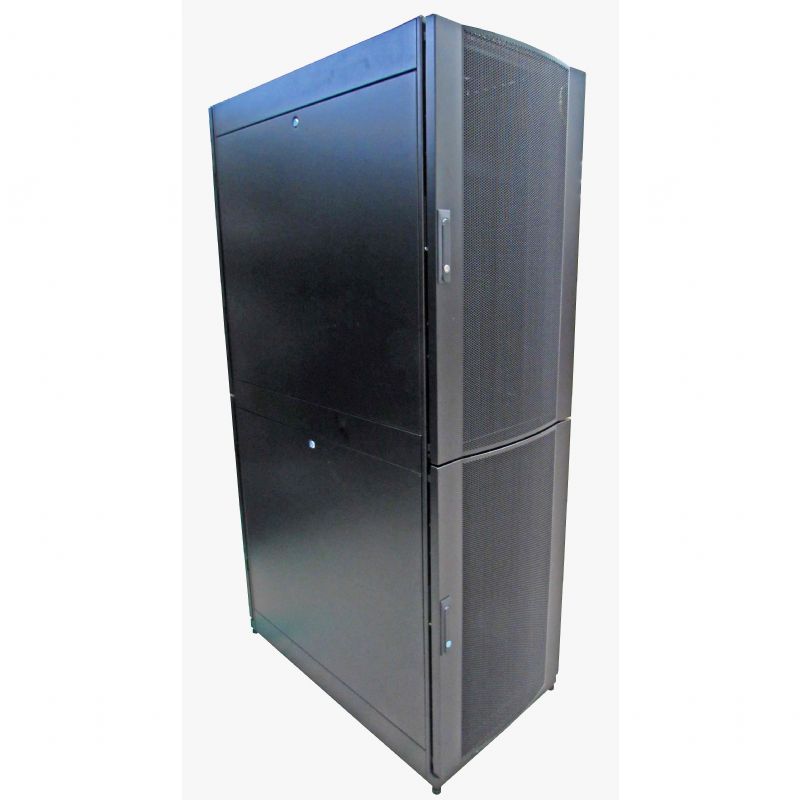

4. For two section (2 compartment) cabinet, with SINGLE OPEN (fully door) front locking door and SINGLE OPEN (fully door) perforated rear locking door.

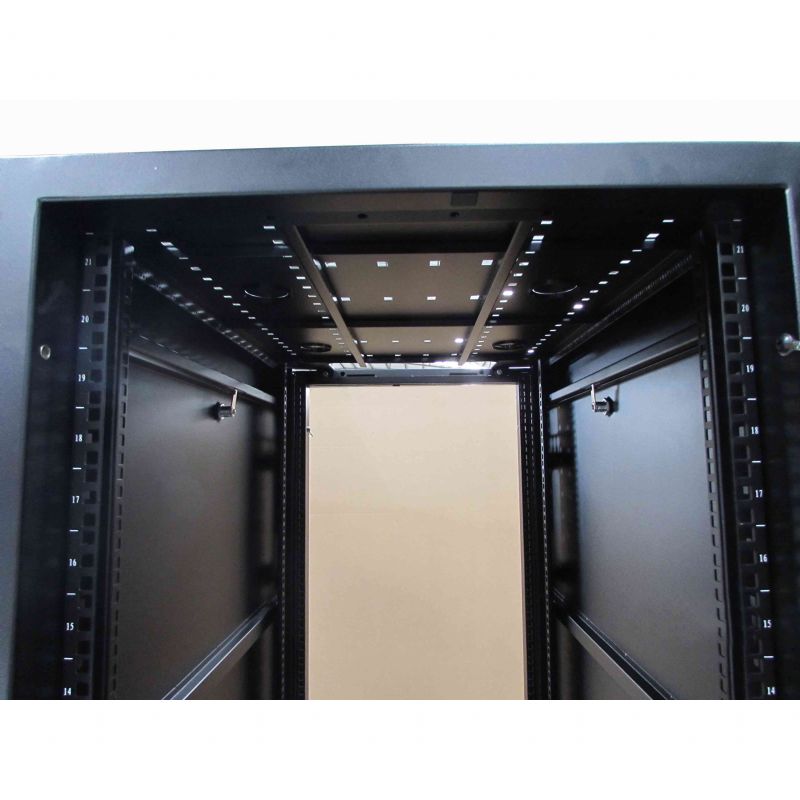

5. Each compartment has its own set of depth-adjustable vertical rails.
6. Four-post rack mount system with mounting angles.

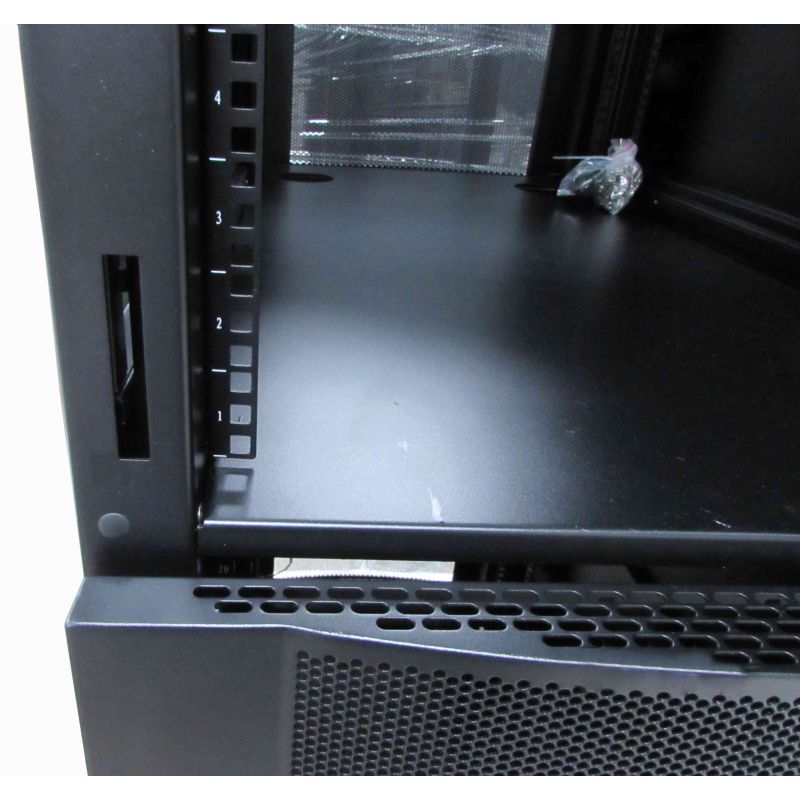

7. The vertical rails are numbered to ease the installation of rack components.

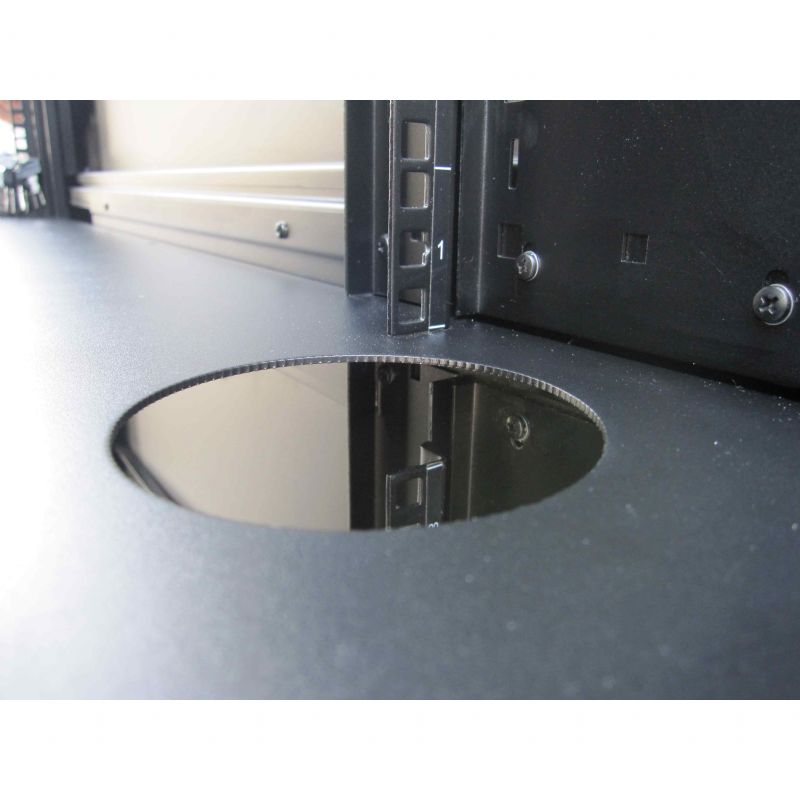

8. Wiring can be run from above or below into the rack.
9. Perforated locking doors with high density round hole, each with its own lock and key.
10. Perforated roof with cable entry access.
11. Secure steel partitions to separate each compartment.

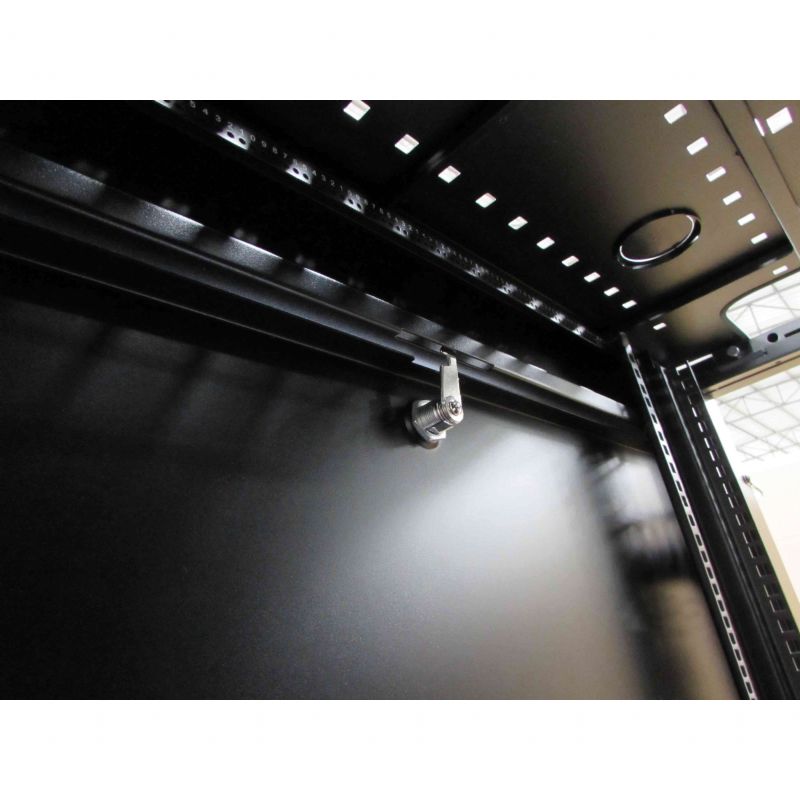

12. Removable two section side panels can be rapidly assembled and disassembled. (with small round locks).
13. Casters and leveling feet included.
14. Include 50cage nuts, 50 mounting screws.
15. Can be assemblied or dis-assemblied packing, Assemblied packing about 1.53cbm/pcs, dis-assemblied packing about 0.655cbm/pcs.More Option:
1. Chinese coded lock for front door and rear door.
2. Signle compartments.
3. Optional outlet power strip, bottom panel, fan tray, shelves, and other accessories for undertaking varies of flexible combination.
4. Customer design and special requirement can be available.
| TT-TL standard specification and technical parameter | ||||||
| Model | Width | Depth | Height | U | Parking size | CBM |
| TT-TL-6637 | 600 | 600 | 1800 | 37 | 690*690*1830 | 0.8712 |
| TT-TL-6837 | 800 | 690*890*1830 | 1.1238 | |||
| TT-TL-6937 | 900 | 690*990*1830 | 1.25 | |||
| TT-TL-6037 | 1000 | 690*1090*1830 | 1.3763 | |||
| TT-TL-6642 | 600 | 600 | 2000 | 42 | 690*690*2030 | 0.9665 |
| TT-TL-6842 | 800 | 690*890*2030 | 1.2466 | |||
| TT-TL-6942 | 900 | 690*990*2030 | 1.387 | |||
| TT-TL-6042 | 1000 | 690*1090*2030 | 1.5268 | |||
| TT-TL-8842 | 800 | 800 | 890*890*2030 | 1.608 | ||
| TT-TL-8042 | 1000 | 890*1090*2030 | 1.9693 | |||
| TT-TL-6647 | 600 | 600 | 2200 | 47 | 690*690*2230 | 1.0617 |
| TT-TL-6847 | 800 | 690*890*2230 | 1.3694 | |||
| TT-TL-6947 | 900 | 690*990*2230 | 1.5233 | |||
| TT-TL-6047 | 1000 | 690*1090*2230 | 1.6772 | |||
| TT-TL-8847 | 800 | 800 | 890*990*2230 | 1.7664 | ||
| TT-TL-8047 | 1000 | 890*1090*2230 | 2.1633 | |||
| TT-TL Standard Accessories List | ||||||
| NO. | Name | QTY | Unit | material | Remarks | |
| 600W | 800W | |||||
| 1 | Front & Rear door frame | 1 | 1 | pair | SPCC T=2.0 | |
| 2 | Front door | 1 | 1 | pc | SPCC T=1.5 | Arch door(with vented holes), 1 section |
| 3 | Front door lock | 1 | 1 | pc | ---- | 1 Point handle lock, 1 section |
| 4 | Left rear door | 1 | 1 | pc | SPCC T=1.2 | Vented holes, 1 section |
| 5 | Right rear door | 1 | 1 | pc | SPCC T=1.2 | Vented holes, 1 section |
| 6 | Rear door lock | 1 | 1 | pc | ---- | 3 point lock, 1 section |
| 7 | Bottom base panel | 1 | 1 | pc | SPCC T=1.2 | |
| 8 | Side door | 4 | 4 | pc | SPCC T=1.2 | Quick removable lock |
| 9 | Top cover | 1 | 1 | pc | SPCC T=1.2 | Two cable entry holes |
| 10 | Castor | 4 | 4 | pc | ---- | 2.5”without brake |
| 11 | Adjustable feet | 4 | 4 | pc | ‘---- | |
| 12 | Mounting angle | 6 | 6 | pc | SPCC T=1.5 | |
| 13 | Mounting Profile | 4 | 4 | pc | SPCC T=2.0 | |
| 14 | Cable Management panel | 2 | 2 | pc | SPCC T=1.5 | |
